\[\sin \left(x + \varepsilon\right) - \sin x\]
Test:
NMSE example 3.3
Bits:
128 bits

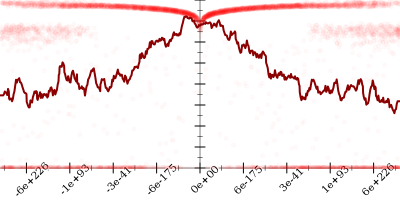

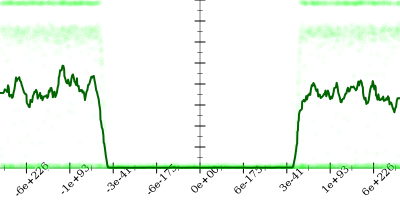

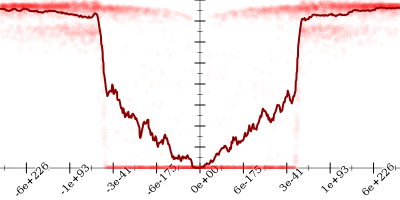

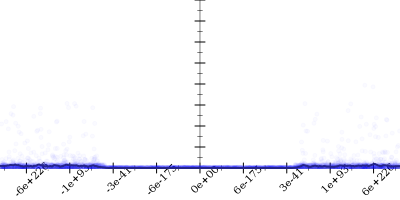

Bits error versus x

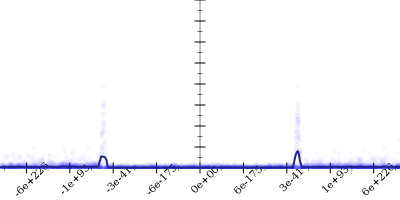

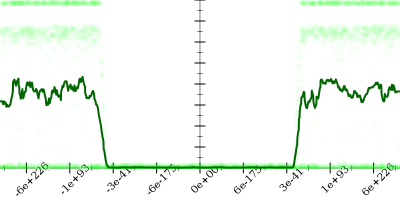

Bits error versus eps
Time: 20.6 s
Input Error: 37.0
Output Error: 0.4
Log: ⚲
Profile: 🕒
\(\left(\cos \varepsilon \cdot \sin x - \sin x\right) + \cos x \cdot \sin \varepsilon\)
  1. Started with
    \[\sin \left(x + \varepsilon\right) - \sin x\]
    37.0
  2. Using strategy rm
    37.0
  3. Applied sin-sum to get
    \[\color{red}{\sin \left(x + \varepsilon\right)} - \sin x \leadsto \color{blue}{\left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right)} - \sin x\]
    22.1
  4. Applied associate--l+ to get
    \[\color{red}{\left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right) - \sin x} \leadsto \color{blue}{\sin x \cdot \cos \varepsilon + \left(\cos x \cdot \sin \varepsilon - \sin x\right)}\]
    22.1
  5. Using strategy rm
    22.1
  6. Applied add-cube-cbrt to get
    \[\sin x \cdot \color{red}{\cos \varepsilon} + \left(\cos x \cdot \sin \varepsilon - \sin x\right) \leadsto \sin x \cdot \color{blue}{{\left(\sqrt[3]{\cos \varepsilon}\right)}^3} + \left(\cos x \cdot \sin \varepsilon - \sin x\right)\]
    22.2
  7. Applied add-cube-cbrt to get
    \[\color{red}{\sin x} \cdot {\left(\sqrt[3]{\cos \varepsilon}\right)}^3 + \left(\cos x \cdot \sin \varepsilon - \sin x\right) \leadsto \color{blue}{{\left(\sqrt[3]{\sin x}\right)}^3} \cdot {\left(\sqrt[3]{\cos \varepsilon}\right)}^3 + \left(\cos x \cdot \sin \varepsilon - \sin x\right)\]
    22.6
  8. Applied cube-unprod to get
    \[\color{red}{{\left(\sqrt[3]{\sin x}\right)}^3 \cdot {\left(\sqrt[3]{\cos \varepsilon}\right)}^3} + \left(\cos x \cdot \sin \varepsilon - \sin x\right) \leadsto \color{blue}{{\left(\sqrt[3]{\sin x} \cdot \sqrt[3]{\cos \varepsilon}\right)}^3} + \left(\cos x \cdot \sin \varepsilon - \sin x\right)\]
    22.6
  9. Applied taylor to get
    \[{\left(\sqrt[3]{\sin x} \cdot \sqrt[3]{\cos \varepsilon}\right)}^3 + \left(\cos x \cdot \sin \varepsilon - \sin x\right) \leadsto {\left(\sqrt[3]{\cos \varepsilon} \cdot \sqrt[3]{\sin x}\right)}^3 + \left(\cos x \cdot \sin \varepsilon - \sin x\right)\]
    22.6
  10. Taylor expanded around 0 to get
    \[\color{red}{{\left(\sqrt[3]{\cos \varepsilon} \cdot \sqrt[3]{\sin x}\right)}^3} + \left(\cos x \cdot \sin \varepsilon - \sin x\right) \leadsto \color{blue}{{\left(\sqrt[3]{\cos \varepsilon} \cdot \sqrt[3]{\sin x}\right)}^3} + \left(\cos x \cdot \sin \varepsilon - \sin x\right)\]
    22.6
  11. Applied simplify to get
    \[\color{red}{{\left(\sqrt[3]{\cos \varepsilon} \cdot \sqrt[3]{\sin x}\right)}^3 + \left(\cos x \cdot \sin \varepsilon - \sin x\right)} \leadsto \color{blue}{\left(\cos \varepsilon \cdot \sin x - \sin x\right) + \cos x \cdot \sin \varepsilon}\]
    0.4
  12. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE example 3.3"
  (- (sin (+ x eps)) (sin x))
  #:target
  (* 2 (* (cos (+ x (/ eps 2))) (sin (/ eps 2)))))
