\[\cos \left(x + \varepsilon\right) - \cos x\]
Test:
NMSE problem 3.3.5
Bits:
128 bits

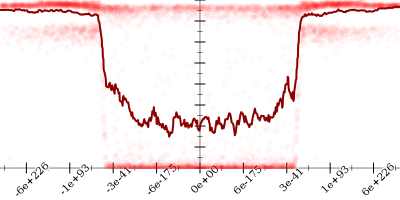

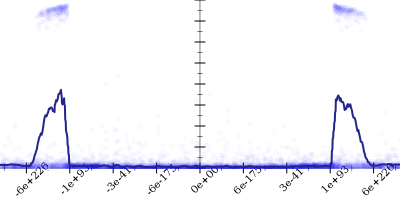

Bits error versus x

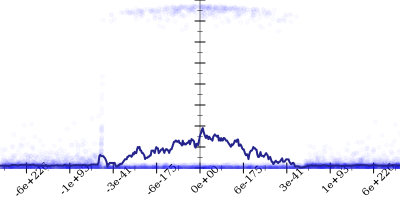

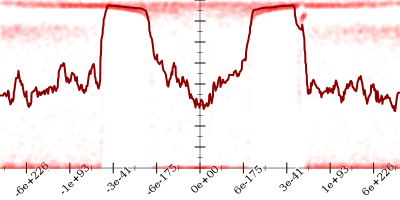

Bits error versus eps
Time: 27.9 s
Input Error: 37.3
Output Error: 3.5
Log: ⚲
Profile: 🕒
\(\begin{cases} \frac{{\left(\cos x \cdot \cos \varepsilon\right)}^2 - {\left(\sin x \cdot \sin \varepsilon\right)}^2}{\cos x \cdot \cos \varepsilon + \sin x \cdot \sin \varepsilon} - \cos x & \text{when } \varepsilon \le -1.5194640071230868 \cdot 10^{-06} \\ \left(\varepsilon \cdot \frac{1}{6}\right) \cdot {x}^3 - \varepsilon \cdot \left(\varepsilon \cdot \frac{1}{2} + x\right) & \text{when } \varepsilon \le 131297377731453.28 \\ \frac{{\left(\cos \varepsilon \cdot \cos x - \sin \varepsilon \cdot \sin x\right)}^3 - {\left(\cos x\right)}^3}{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 + \left({\left(\cos x\right)}^2 + \left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) \cdot \cos x\right)} & \text{otherwise} \end{cases}\)

    if eps < -1.5194640071230868e-06

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      31.1
    2. Using strategy rm
      31.1
    3. Applied cos-sum to get
      \[\color{red}{\cos \left(x + \varepsilon\right)} - \cos x \leadsto \color{blue}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)} - \cos x\]
      1.1
    4. Using strategy rm
      1.1
    5. Applied flip-- to get
      \[\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)} - \cos x \leadsto \color{blue}{\frac{{\left(\cos x \cdot \cos \varepsilon\right)}^2 - {\left(\sin x \cdot \sin \varepsilon\right)}^2}{\cos x \cdot \cos \varepsilon + \sin x \cdot \sin \varepsilon}} - \cos x\]
      1.2

    if -1.5194640071230868e-06 < eps < 131297377731453.28

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      46.2
    2. Applied taylor to get
      \[\cos \left(x + \varepsilon\right) - \cos x \leadsto \frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)\]
      6.5
    3. Taylor expanded around 0 to get
      \[\color{red}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)} \leadsto \color{blue}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)}\]
      6.5
    4. Applied simplify to get
      \[\color{red}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)} \leadsto \color{blue}{\left(\varepsilon \cdot \frac{1}{6}\right) \cdot {x}^3 - \varepsilon \cdot \left(\varepsilon \cdot \frac{1}{2} + x\right)}\]
      6.5

    if 131297377731453.28 < eps

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      29.1
    2. Using strategy rm
      29.1
    3. Applied cos-sum to get
      \[\color{red}{\cos \left(x + \varepsilon\right)} - \cos x \leadsto \color{blue}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)} - \cos x\]
      0.8
    4. Using strategy rm
      0.8
    5. Applied flip3-- to get
      \[\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) - \cos x} \leadsto \color{blue}{\frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^{3} - {\left(\cos x\right)}^{3}}{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 + \left({\left(\cos x\right)}^2 + \left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) \cdot \cos x\right)}}\]
      1.0
    6. Applied simplify to get
      \[\frac{\color{red}{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^{3} - {\left(\cos x\right)}^{3}}}{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 + \left({\left(\cos x\right)}^2 + \left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) \cdot \cos x\right)} \leadsto \frac{\color{blue}{{\left(\cos \varepsilon \cdot \cos x - \sin \varepsilon \cdot \sin x\right)}^3 - {\left(\cos x\right)}^3}}{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 + \left({\left(\cos x\right)}^2 + \left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) \cdot \cos x\right)}\]
      0.9
  1. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE problem 3.3.5"
  (- (cos (+ x eps)) (cos x)))
