\[\frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot e^{-\left(1 - \varepsilon\right) \cdot x} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2}\]
Test:
NMSE Section 6.1 mentioned, A
Bits:
128 bits

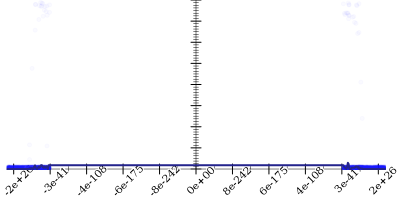

Bits error versus x

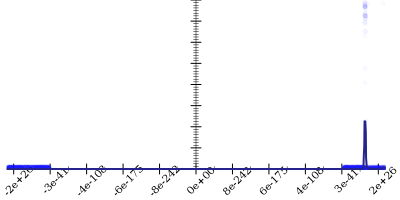

Bits error versus eps
Time: 24.2 s
Input Error: 20.5
Output Error: 0.2
Log: ⚲
Profile: 🕒
\(\begin{cases} 1 & \text{when } x \le 3.63006f0 \\ \frac{\frac{1 + \frac{1}{\varepsilon}}{e^{\left(1 - \varepsilon\right) \cdot x}} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2} & \text{otherwise} \end{cases}\)

    if x < 3.63006f0

    1. Started with
      \[\frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot e^{-\left(1 - \varepsilon\right) \cdot x} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2}\]
      23.4
    2. Applied taylor to get
      \[\frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot e^{-\left(1 - \varepsilon\right) \cdot x} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2} \leadsto \frac{2}{2}\]
      0
    3. Taylor expanded around 0 to get
      \[\frac{\color{red}{2}}{2} \leadsto \frac{\color{blue}{2}}{2}\]
      0
    4. Applied simplify to get
      \[\color{red}{\frac{2}{2}} \leadsto \color{blue}{1}\]
      0

    if 3.63006f0 < x

    1. Started with
      \[\frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot e^{-\left(1 - \varepsilon\right) \cdot x} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2}\]
      1.1
    2. Using strategy rm
      1.1
    3. Applied exp-neg to get
      \[\frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot \color{red}{e^{-\left(1 - \varepsilon\right) \cdot x}} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2} \leadsto \frac{\left(1 + \frac{1}{\varepsilon}\right) \cdot \color{blue}{\frac{1}{e^{\left(1 - \varepsilon\right) \cdot x}}} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2}\]
      1.1
    4. Applied un-div-inv to get
      \[\frac{\color{red}{\left(1 + \frac{1}{\varepsilon}\right) \cdot \frac{1}{e^{\left(1 - \varepsilon\right) \cdot x}}} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2} \leadsto \frac{\color{blue}{\frac{1 + \frac{1}{\varepsilon}}{e^{\left(1 - \varepsilon\right) \cdot x}}} - \left(\frac{1}{\varepsilon} - 1\right) \cdot e^{-\left(1 + \varepsilon\right) \cdot x}}{2}\]
      1.1
  1. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE Section 6.1 mentioned, A"
  (/ (- (* (+ 1 (/ 1 eps)) (exp (- (* (- 1 eps) x)))) (* (- (/ 1 eps) 1) (exp (- (* (+ 1 eps) x))))) 2))
