\[\sin \left(x + \varepsilon\right) - \sin x\]
Test:
NMSE example 3.3
Bits:
128 bits

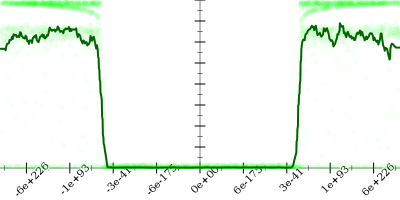

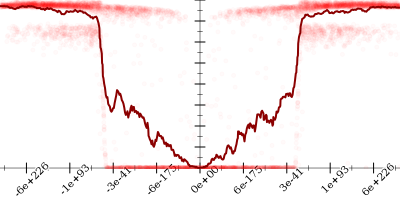

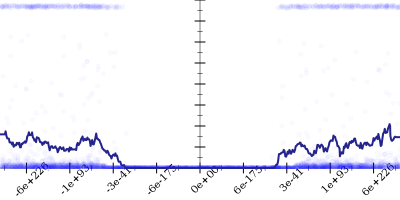

Bits error versus x

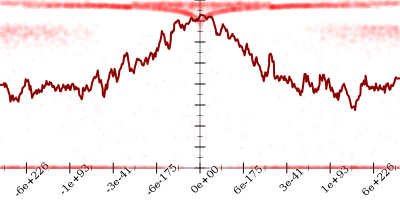

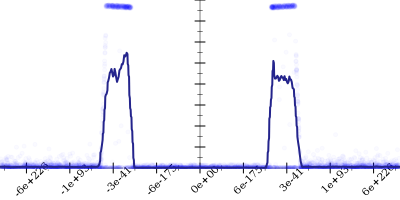

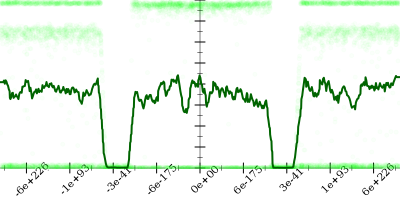

Bits error versus eps
Time: 21.3 s
Input Error: 37.0
Output Error: 5.2
Log: ⚲
Profile: 🕒
\(\begin{cases} \sin x \cdot \cos \varepsilon + \left(\cos x \cdot \sin \varepsilon - \sin x\right) & \text{when } \varepsilon \le -1.3544471110926727 \cdot 10^{-95} \\ \varepsilon - \frac{1}{2} \cdot \left(\left(\varepsilon + x\right) \cdot \left(x \cdot \varepsilon\right)\right) & \text{when } \varepsilon \le 9.071891940860134 \cdot 10^{-92} \\ \left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right) - \sin x & \text{otherwise} \end{cases}\)

    if eps < -1.3544471110926727e-95

    1. Started with
      \[\sin \left(x + \varepsilon\right) - \sin x\]
      31.7
    2. Using strategy rm
      31.7
    3. Applied sin-sum to get
      \[\color{red}{\sin \left(x + \varepsilon\right)} - \sin x \leadsto \color{blue}{\left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right)} - \sin x\]
      7.8
    4. Applied associate--l+ to get
      \[\color{red}{\left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right) - \sin x} \leadsto \color{blue}{\sin x \cdot \cos \varepsilon + \left(\cos x \cdot \sin \varepsilon - \sin x\right)}\]
      7.8

    if -1.3544471110926727e-95 < eps < 9.071891940860134e-92

    1. Started with
      \[\sin \left(x + \varepsilon\right) - \sin x\]
      48.4
    2. Applied taylor to get
      \[\sin \left(x + \varepsilon\right) - \sin x \leadsto \varepsilon - \left(\frac{1}{2} \cdot \left(\varepsilon \cdot {x}^2\right) + \frac{1}{2} \cdot \left({\varepsilon}^2 \cdot x\right)\right)\]
      10.6
    3. Taylor expanded around 0 to get
      \[\color{red}{\varepsilon - \left(\frac{1}{2} \cdot \left(\varepsilon \cdot {x}^2\right) + \frac{1}{2} \cdot \left({\varepsilon}^2 \cdot x\right)\right)} \leadsto \color{blue}{\varepsilon - \left(\frac{1}{2} \cdot \left(\varepsilon \cdot {x}^2\right) + \frac{1}{2} \cdot \left({\varepsilon}^2 \cdot x\right)\right)}\]
      10.6
    4. Applied simplify to get
      \[\color{red}{\varepsilon - \left(\frac{1}{2} \cdot \left(\varepsilon \cdot {x}^2\right) + \frac{1}{2} \cdot \left({\varepsilon}^2 \cdot x\right)\right)} \leadsto \color{blue}{\varepsilon - \frac{1}{2} \cdot \left(\left(\varepsilon + x\right) \cdot \left(x \cdot \varepsilon\right)\right)}\]
      0.1

    if 9.071891940860134e-92 < eps

    1. Started with
      \[\sin \left(x + \varepsilon\right) - \sin x\]
      31.3
    2. Using strategy rm
      31.3
    3. Applied sin-sum to get
      \[\color{red}{\sin \left(x + \varepsilon\right)} - \sin x \leadsto \color{blue}{\left(\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon\right)} - \sin x\]
      7.6
  1. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE example 3.3"
  (- (sin (+ x eps)) (sin x))
  #:target
  (* 2 (* (cos (+ x (/ eps 2))) (sin (/ eps 2)))))
