\[\cos \left(x + \varepsilon\right) - \cos x\]
Test:
NMSE problem 3.3.5
Bits:
128 bits

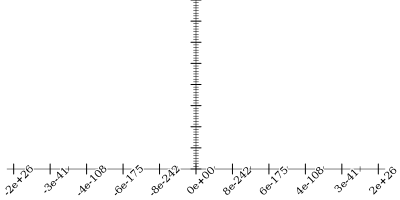

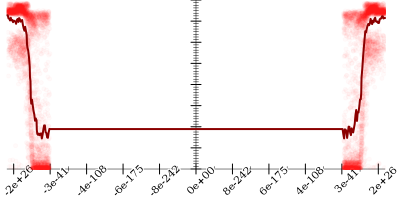

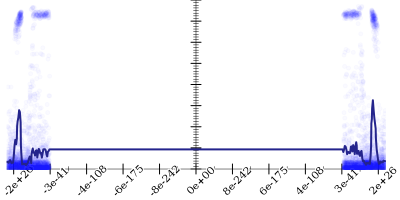

Bits error versus x

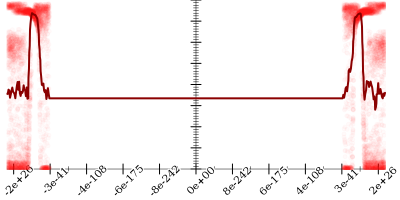

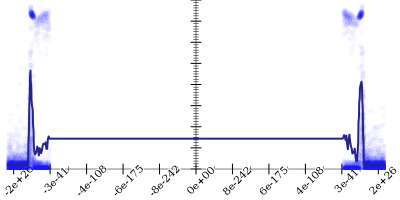

Bits error versus eps
Time: 9.0 s
Input Error: 18.0
Output Error: 3.4
Log: ⚲
Profile: 🕒
\(\begin{cases} \frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{(\left(\cos \varepsilon\right) * \left(\cos x\right) + \left(\cos x\right))_* - \sin \varepsilon \cdot \sin x} & \text{when } \varepsilon \le -4.9196116f-11 \\ \left(\varepsilon \cdot \frac{1}{6}\right) \cdot {x}^3 - \varepsilon \cdot (\frac{1}{2} * \varepsilon + x)_* & \text{when } \varepsilon \le 4.7023132f-11 \\ \frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{(\left(\cos \varepsilon\right) * \left(\cos x\right) + \left(\cos x\right))_* - \sin \varepsilon \cdot \sin x} & \text{otherwise} \end{cases}\)

    if eps < -4.9196116f-11

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      17.0
    2. Using strategy rm
      17.0
    3. Applied cos-sum to get
      \[\color{red}{\cos \left(x + \varepsilon\right)} - \cos x \leadsto \color{blue}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)} - \cos x\]
      3.1
    4. Using strategy rm
      3.1
    5. Applied flip-- to get
      \[\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) - \cos x} \leadsto \color{blue}{\frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) + \cos x}}\]
      3.1
    6. Applied simplify to get
      \[\frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) + \cos x}} \leadsto \frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\color{blue}{(\left(\cos \varepsilon\right) * \left(\cos x\right) + \left(\cos x\right))_* - \sin \varepsilon \cdot \sin x}}\]
      3.2

    if -4.9196116f-11 < eps < 4.7023132f-11

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      20.5
    2. Applied taylor to get
      \[\cos \left(x + \varepsilon\right) - \cos x \leadsto \frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)\]
      4.1
    3. Taylor expanded around 0 to get
      \[\color{red}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)} \leadsto \color{blue}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)}\]
      4.1
    4. Applied simplify to get
      \[\color{red}{\frac{1}{6} \cdot \left(\varepsilon \cdot {x}^{3}\right) - \left(\frac{1}{2} \cdot {\varepsilon}^2 + \varepsilon \cdot x\right)} \leadsto \color{blue}{\left(\varepsilon \cdot \frac{1}{6}\right) \cdot {x}^3 - \varepsilon \cdot (\frac{1}{2} * \varepsilon + x)_*}\]
      4.1

    if 4.7023132f-11 < eps

    1. Started with
      \[\cos \left(x + \varepsilon\right) - \cos x\]
      16.7
    2. Using strategy rm
      16.7
    3. Applied cos-sum to get
      \[\color{red}{\cos \left(x + \varepsilon\right)} - \cos x \leadsto \color{blue}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)} - \cos x\]
      2.9
    4. Using strategy rm
      2.9
    5. Applied flip-- to get
      \[\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) - \cos x} \leadsto \color{blue}{\frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) + \cos x}}\]
      2.9
    6. Applied simplify to get
      \[\frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\color{red}{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right) + \cos x}} \leadsto \frac{{\left(\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon\right)}^2 - {\left(\cos x\right)}^2}{\color{blue}{(\left(\cos \varepsilon\right) * \left(\cos x\right) + \left(\cos x\right))_* - \sin \varepsilon \cdot \sin x}}\]
      3.0
  1. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE problem 3.3.5"
  (- (cos (+ x eps)) (cos x)))
