\[\frac{x.re \cdot y.re + x.im \cdot y.im}{y.re \cdot y.re + y.im \cdot y.im}\]
Test:
_divideComplex, real part
Bits:
128 bits

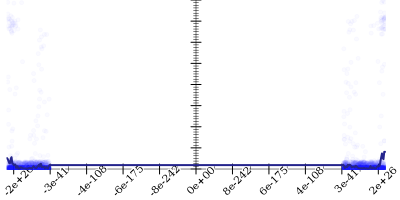

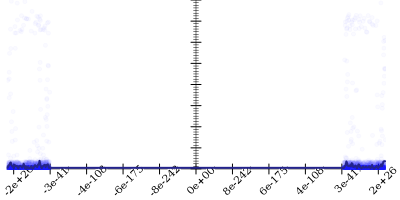

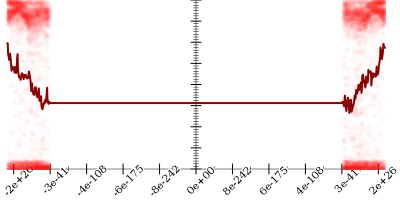

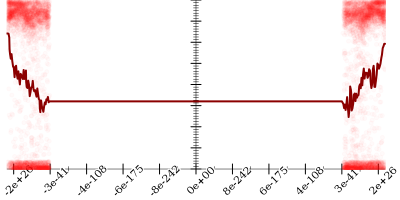

Bits error versus x.re

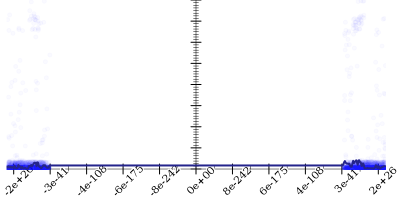

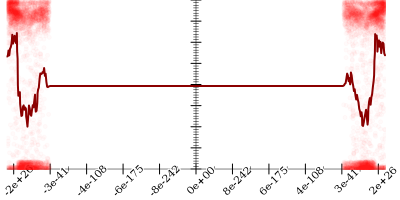

Bits error versus x.im

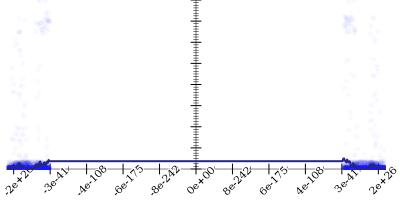

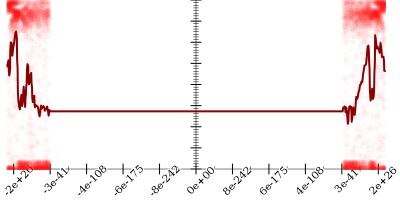

Bits error versus y.re
Bits error versus y.im
Time: 10.7 s
Input Error: 16.2
Output Error: 0.5
Log: ⚲
Profile: 🕒
\(\begin{cases} \frac{y.re}{y.im} \cdot \frac{x.re}{y.im} + \frac{x.im}{y.im} & \text{when } y.im \le -344.83047f0 \\ \frac{y.im}{y.re} \cdot \frac{x.im}{y.re} + \frac{x.re}{y.re} & \text{when } y.im \le 1.0322674f+10 \\ \frac{y.re}{y.im} \cdot \frac{x.re}{y.im} + \frac{x.im}{y.im} & \text{otherwise} \end{cases}\)

    if y.im < -344.83047f0 or 1.0322674f+10 < y.im

    1. Started with
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{y.re \cdot y.re + y.im \cdot y.im}\]
      18.8
    2. Using strategy rm
      18.8
    3. Applied add-sqr-sqrt to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{\color{red}{y.re \cdot y.re + y.im \cdot y.im}} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{\color{blue}{{\left(\sqrt{y.re \cdot y.re + y.im \cdot y.im}\right)}^2}}\]
      18.8
    4. Applied simplify to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{red}{\left(\sqrt{y.re \cdot y.re + y.im \cdot y.im}\right)}}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{blue}{\left(\sqrt{{y.re}^2 + y.im \cdot y.im}\right)}}^2}\]
      18.8
    5. Applied taylor to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\left(\sqrt{{y.re}^2 + y.im \cdot y.im}\right)}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{y.im}^2}\]
      16.3
    6. Taylor expanded around 0 to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{red}{y.im}}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{blue}{y.im}}^2}\]
      16.3
    7. Applied taylor to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{y.im}^2} \leadsto \frac{y.re \cdot x.re}{{y.im}^2} + \frac{x.im}{y.im}\]
      5.2
    8. Taylor expanded around 0 to get
      \[\color{red}{\frac{y.re \cdot x.re}{{y.im}^2} + \frac{x.im}{y.im}} \leadsto \color{blue}{\frac{y.re \cdot x.re}{{y.im}^2} + \frac{x.im}{y.im}}\]
      5.2
    9. Applied simplify to get
      \[\frac{y.re \cdot x.re}{{y.im}^2} + \frac{x.im}{y.im} \leadsto \frac{y.re}{y.im} \cdot \frac{x.re}{y.im} + \frac{x.im}{y.im}\]
      0.4
    10. Applied final simplification

    if -344.83047f0 < y.im < 1.0322674f+10

    1. Started with
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{y.re \cdot y.re + y.im \cdot y.im}\]
      13.8
    2. Using strategy rm
      13.8
    3. Applied add-sqr-sqrt to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{\color{red}{y.re \cdot y.re + y.im \cdot y.im}} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{\color{blue}{{\left(\sqrt{y.re \cdot y.re + y.im \cdot y.im}\right)}^2}}\]
      13.7
    4. Applied simplify to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{red}{\left(\sqrt{y.re \cdot y.re + y.im \cdot y.im}\right)}}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{blue}{\left(\sqrt{{y.re}^2 + y.im \cdot y.im}\right)}}^2}\]
      13.7
    5. Applied taylor to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\left(\sqrt{{y.re}^2 + y.im \cdot y.im}\right)}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{y.re}^2}\]
      10.7
    6. Taylor expanded around inf to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{red}{y.re}}^2} \leadsto \frac{x.re \cdot y.re + x.im \cdot y.im}{{\color{blue}{y.re}}^2}\]
      10.7
    7. Applied taylor to get
      \[\frac{x.re \cdot y.re + x.im \cdot y.im}{{y.re}^2} \leadsto \frac{y.im \cdot x.im}{{y.re}^2} + \frac{x.re}{y.re}\]
      3.0
    8. Taylor expanded around 0 to get
      \[\color{red}{\frac{y.im \cdot x.im}{{y.re}^2} + \frac{x.re}{y.re}} \leadsto \color{blue}{\frac{y.im \cdot x.im}{{y.re}^2} + \frac{x.re}{y.re}}\]
      3.0
    9. Applied simplify to get
      \[\frac{y.im \cdot x.im}{{y.re}^2} + \frac{x.re}{y.re} \leadsto \frac{y.im}{y.re} \cdot \frac{x.im}{y.re} + \frac{x.re}{y.re}\]
      0.7
    10. Applied final simplification
  1. Removed slow pow expressions

Original test:


(lambda ((x.re default) (x.im default) (y.re default) (y.im default))
  #:name "_divideComplex, real part"
  (/ (+ (* x.re y.re) (* x.im y.im)) (+ (* y.re y.re) (* y.im y.im))))
