\[\tan \left(x + \varepsilon\right) - \tan x\]
Test:
NMSE problem 3.3.2
Bits:
128 bits

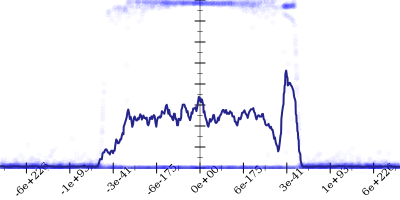

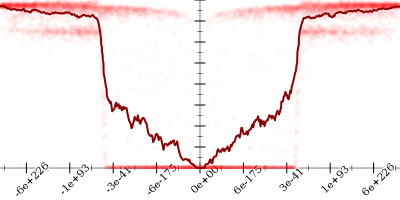

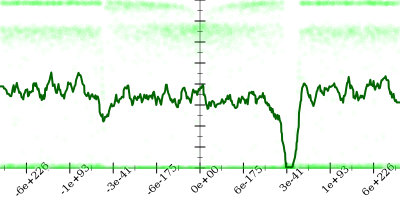

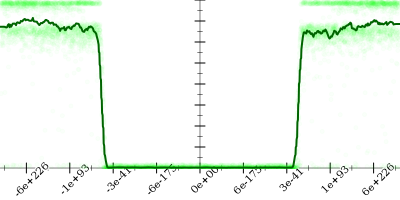

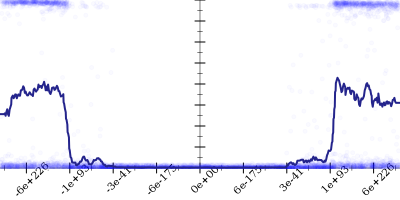

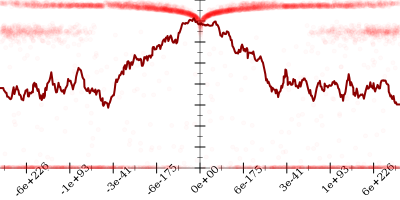

Bits error versus x
Bits error versus eps
Time: 33.5 s
Input Error: 36.7
Output Error: 9.6
Log: ⚲
Profile: 🕒
\(\begin{cases} \frac{\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon}{\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon} - \tan x & \text{when } \varepsilon \le -2.4270278086576645 \cdot 10^{-11} \\ \varepsilon + \left({\varepsilon}^{3} \cdot {x}^2 + {\varepsilon}^{4} \cdot {x}^{3}\right) & \text{when } \varepsilon \le 5.191164414998466 \cdot 10^{-54} \\ \frac{\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon}{\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon} - \tan x & \text{otherwise} \end{cases}\)

    if eps < -2.4270278086576645e-11 or 5.191164414998466e-54 < eps

    1. Started with
      \[\tan \left(x + \varepsilon\right) - \tan x\]
      30.3
    2. Using strategy rm
      30.3
    3. Applied tan-quot to get
      \[\color{red}{\tan \left(x + \varepsilon\right)} - \tan x \leadsto \color{blue}{\frac{\sin \left(x + \varepsilon\right)}{\cos \left(x + \varepsilon\right)}} - \tan x\]
      30.3
    4. Using strategy rm
      30.3
    5. Applied cos-sum to get
      \[\frac{\sin \left(x + \varepsilon\right)}{\color{red}{\cos \left(x + \varepsilon\right)}} - \tan x \leadsto \frac{\sin \left(x + \varepsilon\right)}{\color{blue}{\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon}} - \tan x\]
      28.4
    6. Using strategy rm
      28.4
    7. Applied sin-sum to get
      \[\frac{\color{red}{\sin \left(x + \varepsilon\right)}}{\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon} - \tan x \leadsto \frac{\color{blue}{\sin x \cdot \cos \varepsilon + \cos x \cdot \sin \varepsilon}}{\cos x \cdot \cos \varepsilon - \sin x \cdot \sin \varepsilon} - \tan x\]
      2.8

    if -2.4270278086576645e-11 < eps < 5.191164414998466e-54

    1. Started with
      \[\tan \left(x + \varepsilon\right) - \tan x\]
      44.9
    2. Applied taylor to get
      \[\tan \left(x + \varepsilon\right) - \tan x \leadsto \varepsilon + \left({\varepsilon}^{3} \cdot {x}^2 + {\varepsilon}^{4} \cdot {x}^{3}\right)\]
      18.4
    3. Taylor expanded around 0 to get
      \[\color{red}{\varepsilon + \left({\varepsilon}^{3} \cdot {x}^2 + {\varepsilon}^{4} \cdot {x}^{3}\right)} \leadsto \color{blue}{\varepsilon + \left({\varepsilon}^{3} \cdot {x}^2 + {\varepsilon}^{4} \cdot {x}^{3}\right)}\]
      18.4
  1. Removed slow pow expressions

Original test:


(lambda ((x default) (eps default))
  #:name "NMSE problem 3.3.2"
  (- (tan (+ x eps)) (tan x))
  #:target
  (/ (sin eps) (* (cos x) (cos (+ x eps)))))
